Wiring a button, some LEDs and a GPS

Below are details on how my dashcam is connected up. I am no electrician but from reading
many web pages and after a fair bit of testing I think this is a perfectly decent setup.
Please use as a guide, don't blame me if your Pi tries to go all Skynet on you.

Pin layout
GPIO pin connections looking from above your Pi with the micro power connection at the top left and
the GPIO in the top-right corner. The pin header numbers are in this order :-

Header #'s
    1  2
    3  4
    5  6
    7  8
    9  etc...

Update: I moved header #12 (GPIO1) and #13 (GPIO2) to header #16 (GPIO4) and #18 (GPIO5) so
they can be used by a UPS PIco.

And with full detail the pin header layout looks like this:-
  1. 3.3v ---> GPS VIN  2. 5v
  3. SDA0  4. 5v
  5. SCL0  6. 0v ---> GPS GND
  7. GPIO7   8. TxD ---> GPS RX
  9. 0v10. RxD ---> GPS TX
11. GPIO0 ---> OS LED (green)12. GPIO1
13. GPIO214. 0v ---> Button ground
15. GPIO316. GPIO4 ---> Status LED (yellow / blue)
17. 3.3v ---> Power LED (red)18. GPIO5 ---> Button
19. MOSI20. 0v ---> OS & Status LEDs ground
21. MISO22. GPIO6
23. SCLK24. CE0
25. 0v ---> Power LED ground26. CE1

The Button
The shut down / reboot button is just a simple momentary push button. One pin on the button
is connected to GPIO 5 (header #18) with a 10k resistor in-between. The other button pin is grounded
to header #14.

If you are using the supplied scripts a program called "pwr_butt" constantly runs (with a small delay
between reads) monitoring GPIO 5. When the button is pressed the GPS, video recording and
monitoring scripts are all stopped. It then goes into a short loop and checks to see if the button has
been released or not. If it has been released the program initiates a power-off, if the button is still held
down after a few seconds the Pi is rebooted.

I used the wiringPi libraries to access the GPIO pins for the button and LEDs. See the GPIO section
of the install guide for further information.

For me the best location for this button was on top of the ethernet socket but consider your driving
position and how you will access the unit and place the button accordingly.

The GPS  (The full Adafruit guide is here)
If you use an alternative GPS device for example a USB GPS then you can probably just install gpsd
and skip to the testing section. Also, if you are using the provided scripts do not forget to update the
global.rc file with your GPS device path.

Important note
If you are using a GPS with the Pi camera be aware that the Pi camera will interfere considerably
with the GPS signal. I would recommend keeping the Pi camera and GPS at least 20 centimetres apart.
Shielding the Pi camera's ribbon cable and the camera area with copper or aluminium foil will also
help slightly. Insulating the foil where required with isolation tape.

Power is taken from header #1 which is 3.3v, connect this to VIN on the GPS unit.
I used the ground (0v) from header #6 to connect to GND on the GPS.
Pi TxD (header #8) is connected to RX on the GPS unit.
Pi RxD (header #10) is connected to TX on the GPS unit.
I also installed the holder and optional battery.

Startup times can vary but I usually get a fix from a warm start within 15 seconds, a cold start normally
takes around 30-90 seconds.

Once the GPS unit is ready we need to free up the tty serial line. First make a backup of the cmdline
file just in case.
[root@carpi2 ~]# cp /boot/cmdline.txt /boot/cmdline.txt.org
Edit the command file and remove the "console=ttyAMA0,115200 kgdboc=ttyAMA0,115200" so it
looks like this...
[root@carpi2 ~]# cat /boot/cmdline.txt
root=/dev/mmcblk0p2 rw rootwait console=tty1 selinux=0 plymouth.enable=0 smsc95xx.turbo_mode=N dwc_otg.lpm_enable=0 elevator=noop

Next we need to stop 'getty' grabbing the connection to ttyAMA0.
[root@carpi2 ~]# systemctl disable serial-getty@ttyAMA0.service

I used gpsd to access the GPS unit. It worked straight away and is very easy to use. Install gpsd:
[root@carpi2 ~]# pacman -S gpsd

Add a rule so /dev/ttyAMA0 permissions are set correctly for gpsd automatically at boot time.
[root@carpi2 ~]# vi /etc/udev/rules.d/80-gpsd-perm.rules
# Change mode of ttyAMA0 so it is readable by gpsd
KERNEL=="ttyAMA0", SUBSYSTEM=="tty", DRIVER=="", MODE="0666"
Write and save the file.

Time for a reboot.
[root@carpi2 ~]# sync;reboot

If you want to have a quick check on whether your GPS is working you can just 'cat' the device:
[root@carpi2 ~]# cat /dev/ttyAMA0 (or the device path to your GPS device)
If it's working you should see a lot of lines of text beginning with $GP... appearing in the terminal
window. Ctrl+C to quit.

Start the GPS daemon using the device path to your GPS device (man gpsd for options)
[root@carpi2 ~]# /usr/bin/gpsd /dev/ttyAMA0 -F /var/run/gpsd.sock
You can check gpsd is interacting correctly with your GPS device like so:
[root@carpi2 ~]# telnet localhost 2947
Then enter: ?WATCH={"enable":true,"json":true}
If the daemon has connected successfully and things are working you should start to see some output.
To disable and stop the output type: ?WATCH={"enable":false}
Type Ctrl+] followed by 'quit' and return to exit this telnet connection.

If you have a satellite fix a good way to check all the data at once is using the cgps command.
[root@carpi2 ~]# cgps -s (without the -s you see all the information from the daemon)

Congratulations, the GPS is working! Here is an excellent page on GPSD with lots of information and
example programs on how to access things. The included program I wrote is called gps_logger. It is
a C program which connects to GPSD and after a GPS fix (or immediately if GPS_wait is set to 'no'
in the global.rc file) starts the pivid.sh or picam.py and motion_camera.sh scripts as required. It also
writes the gps_log file and gps_route file to /home/camera/logs by default.

The LEDs (see the GPIO section of the install guide to setup the gpio program)
For this last version I used 3mm flat top LEDs that do not require resistors. The green was a little
brighter than the red and blue so I added a resistor to help even things out.
The red LED is connected to pin header #17 (3.3v) and grounded (0v) on pin header #25.
It's connected to 3.3v so it comes on as soon as the Pi has power.

The green LED is connected to GPIO 0 (header #11) and grounded on header #20.
The blue LED is connected to GPIO 4 (header #16) and is also grounded to header #20.

My soldering iron is not the best but it does the job.

You can switch the LEDs off and on using the 'gpio' command:-
[root@carpi2 ~]# /usr/local/bin/gpio write 4 1
This will enable GPIO 4 and should switch on our blue (or yellow) status LED.
To disable GPIO 4...
[root@carpi2 ~]# /usr/local/bin/gpio write 4 0

 It may be best to first test the brightness of your LEDs on a breadboard so you can get the
 level consistent between them.

 LEDs have polarity, I do not believe you will damage them if they are connected the wrong way,
 they just won't work. Usually the LED will have one leg longer than the other, the longer leg being
 positive (+).

I taped the ribbon cable to the underside of the top cover but this makes it quite fiddly to feed the
cameras ribbon cable into the CSI slot whilst holding the top cover close. If you also tape the cable
make sure you leave enough slack to be able to feed the cable into its slot and lock it in place.

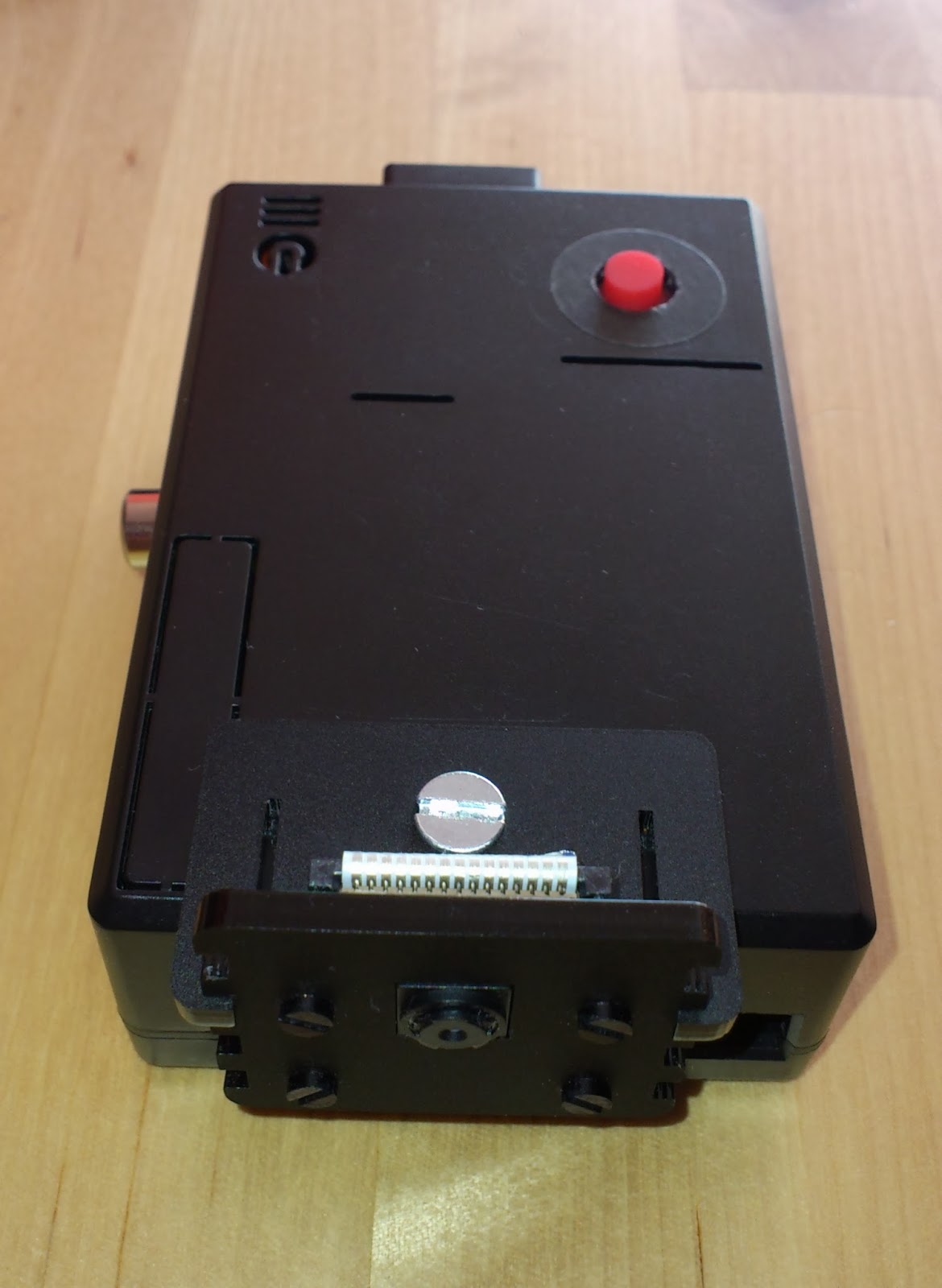

The final position of the button and GPS unit.

Hooray, all done!
